| U05 Pendant/Surface Mount LED Aluminum Profile Specification： | |||
| Item No.: | LS-U05 | ||
| Beam angle: | 50 degrees | ||
| Max LED strip width: | 18mm | ||
| Power consumption: | ＜20W/m | ||
| Length: | 2m, 2.5m in stock, max 6m upon request | ||
| Aluminum profile: | Temper: T5 Grade: 6063 series |
||
| Diffuser material: | PC/PMMA | ||

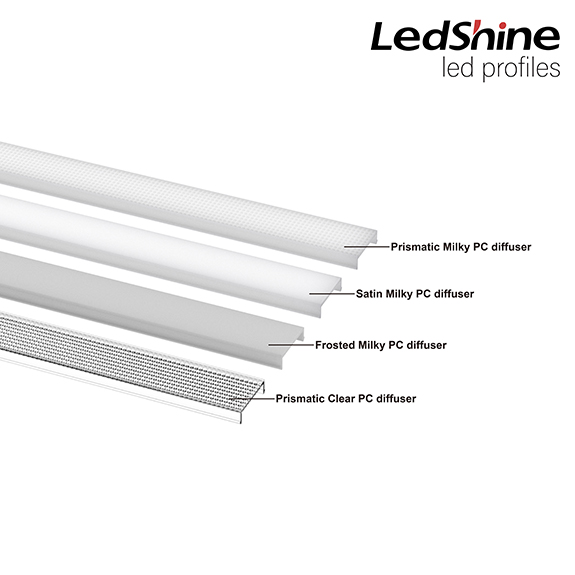

| Diffuser color: | Opal/Milky/Frosted/Clear/Black | ||

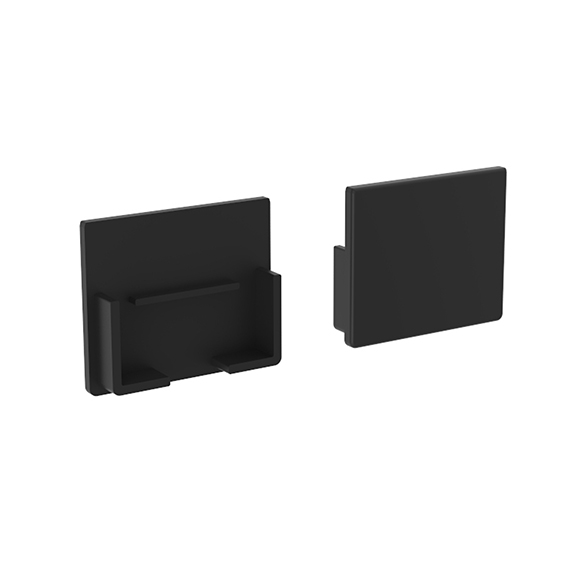

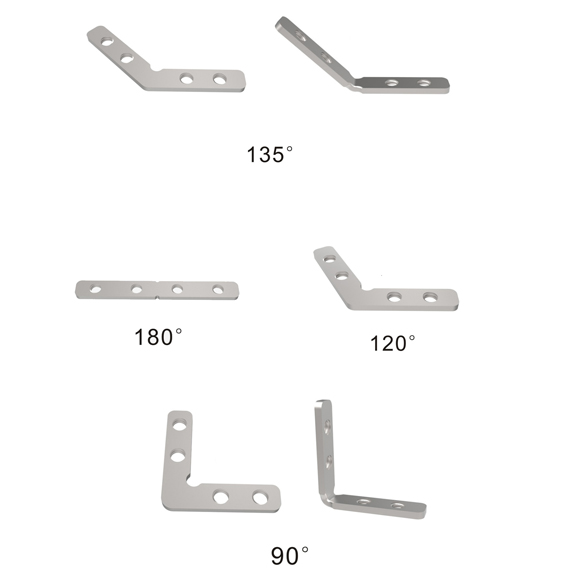

| Accessories: | Plastic endcap with hole/ without hole Metal Clip/Suspension Kit |
||
| Surface treatment: | Satin anodized finish | ||
| Customized Color: | Color Anodized/Powder Coated as RAL Color | ||
| MOQ: | 100m/item | ||
| Warranty: | 5 years | ||
| Certification: | CE, RoHs, REACH | ||
U05 Pendant/Surface Mount LED Aluminum Profile Features:
- Reduced glare by recessing the cover in the profile
- Higher efficiency from the lighting fixture when using the prismatic cover
- No light gaps at the ends of the profiles

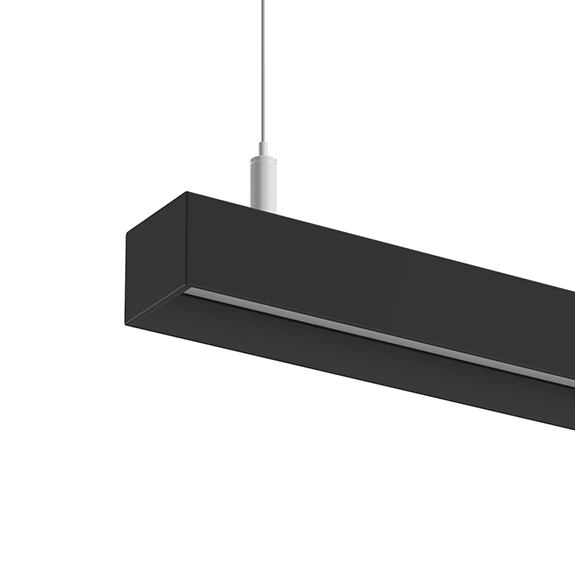

- With suspension wire for suspension mounting.
- Increase the life time of your LED Strip.
- Easy installation, low maintenance and environmental friendly.
Applications:
It's suitable for all concealed lighting applications including joinery lighting, cove lighting, under-cabinet lighting, display case lighting, restaurant & bar lighting, residential strip-lighting etc.
