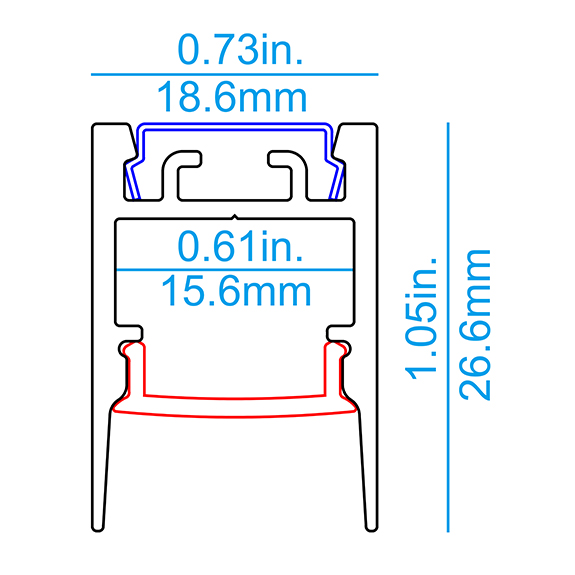

U02 Pendant/Surface LED Profile
Pendant Mount
This slim LED profile is especially designed to suit our flexible LED Strip. The profile is available in maximum 6.0 mtr lengths and can be customized to suit any project or requirement. It's suitable for all concealed lighting applications.
U02 Pendant/Surface Mount LED Aluminum Profile Specification:
Item No.: LS-U02
Beam angle: 100 degrees
Max LED strip width: 14mm
Power consumption: <14.4W/m
Length: 2m, 2.5m in stock, max 6m upon request
Aluminum profile: Temper: T5
Grade: 6063 series
Diffuser material: PC/PMMA
Diffuser color: Opal/Milky/Frosted/Clear/Black
Accessories: Plastic endcap with hole/ without hole
Metal Clip/Suspension Kit
Surface treatment: Satin anodized finish
Customized Color: Color Anodized/Powder Coated as RAL Color
MOQ: 100m/item
Warranty: 5 years
Certification: CE, RoHs, REACH


U02 Pendant/Surface Mount LED Aluminum Profile Features:

- This slim Aluminum Extrusion is suitable for all concealed lighting applications.

-Conceals the light source without exposing the user to discomfort.

-Increase the life time of your LED Strip.

 -Easy installation, low maintenance and environmental friendly.


It's suitable for all concealed lighting applications including joinery lighting, cove lighting, under-cabinet lighting, display case lighting, restaurant & bar lighting, residential strip-lighting etc.
