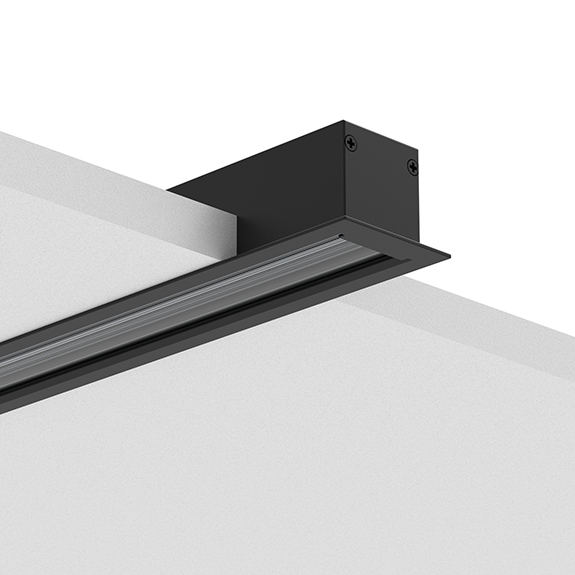

R25L Recessed LED Profile
LED Linear Light System
This 25mm LED profile is especially designed to suit our flexible LED Strip. The profile is available in maximum 6.0 mtr lengths and can be customized to suit any project or requirement. It's suitable for all Architectural lighting application.
R25L Recessed Mount LED Aluminum Profile Specification:
Item No.: LS-R25
Beam angle: Asymmetric 18° / Left&Right Asymmetric 25° /130×110°/ 90×110°/ 60×110°
Max LED strip width: 12mm
Power consumption: <19W/m
Length: 2m, 2.5m in stock, max 6m upon request
Aluminum profile: Temper: T5
Grade: 6063 series
Diffuser material: PMMA
Diffuser color: Clear

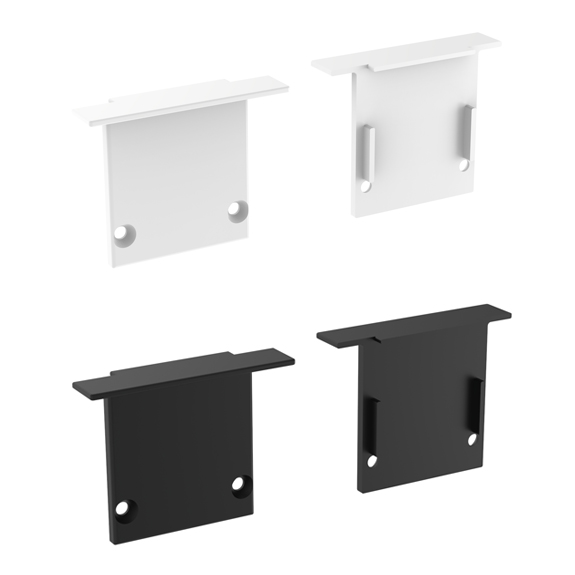

Accessories: Aluminium end cap without hole
Metal Clip
Surface treatment: Satin anodized finish/Power coating finish
Customized Color: Color Anodized/Powder Coated as RAL Color
MOQ: 100m/item
Warranty: 5 years
Certification: CE, RoHs, REACH


R25 Recessed Mount LED Aluminum Profile Features:

- Aluminum Extrusion with wings to conceal the groove.

-Can be recessed mounting in pre-made slots of woodworking and drywall structures.

-Increase the life time of your LED Strip.

 -Easy installation, low maintenance and environmental friendly.


It's suitable for all architectural lighting applications which needs optic lighting.
