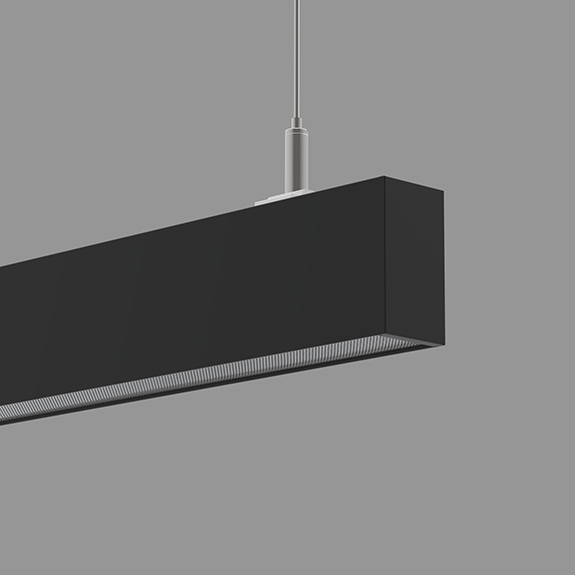

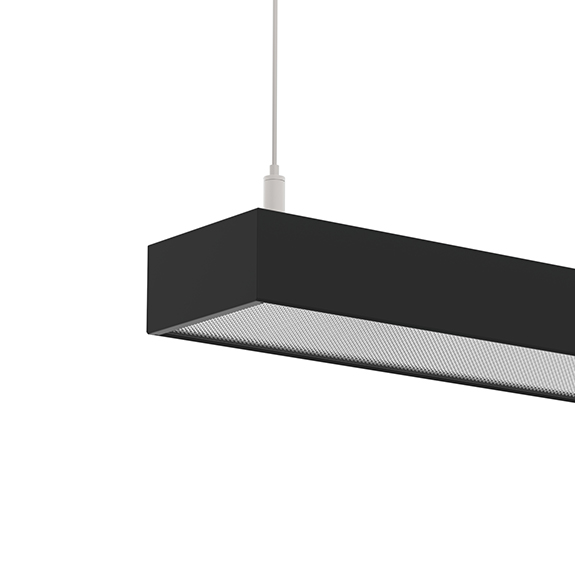

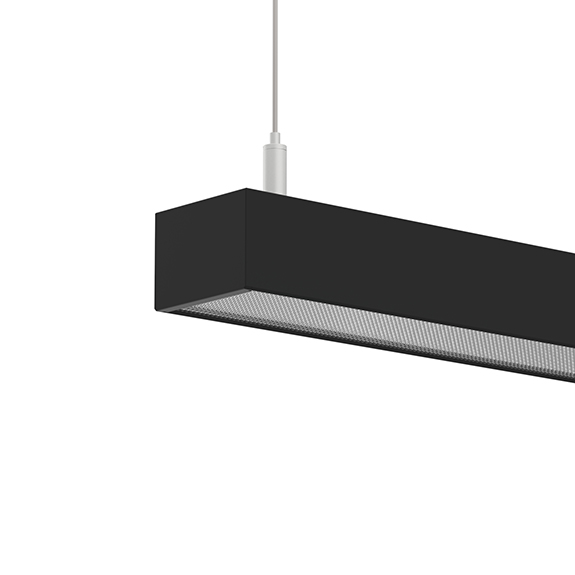

S25O/S25S Pendant/Surface Optic LED Profile
LED Linear Light System
This 25mm LED profile is especially designed to suit our flexible LED Strip. The profile is available in maximum 6.0 mtr lengths and can be customized to suit any project or requirement. It's suitable for all Architectural lighting application.
S25O/S25S Surface/Pendant Mount LED Aluminum Profile Specification:
Item No.: LS-S25O/LS-S25S
Beam angle: 25°Lens+Louvres/50°Lens+Louvres//50°×50° Lens+Louvres
Max LED strip width: 19mm
Power consumption: <48W/m
Length: 2m, 2.5m in stock, max 6m upon request
Aluminum profile: Temper: T5
Grade: 6063 series
Diffuser material: PMMA
Diffuser color:  Clear

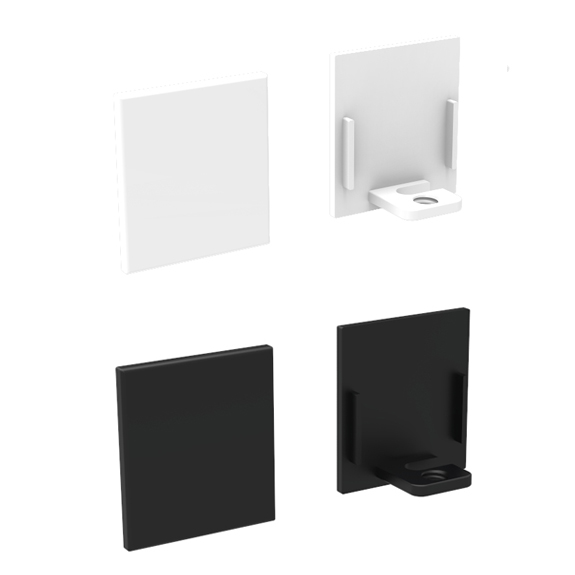

Accessories: Aluminium end cap without hole
Metal Clip/Suspension Kit
Surface treatment: Satin anodized finish/Power coating finish
Customized Color: Color Anodized/Powder Coated as RAL Color
MOQ: 100m/item
Warranty: 5 years
Certification: CE, RoHs, REACH


S25O/S25S Surface/Pendant Mount LED Aluminum Profile Features:

- Slim Aluminum Extrusion is suitable for all indoor lighting applications which needs optic lighting.

-Can be surface mounting and pendant mounting.

-Increase the life time of your LED Strip.

 -Easy installation, low maintenance and environmental friendly.


It's suitable for all indoor lighting applications including joinery lighting, cove lighting, under-cabinet lighting, display case lighting, restaurant & bar lighting, residential strip-lighting etc.
