R25 Recessed LED Profile
LED Linear Light System

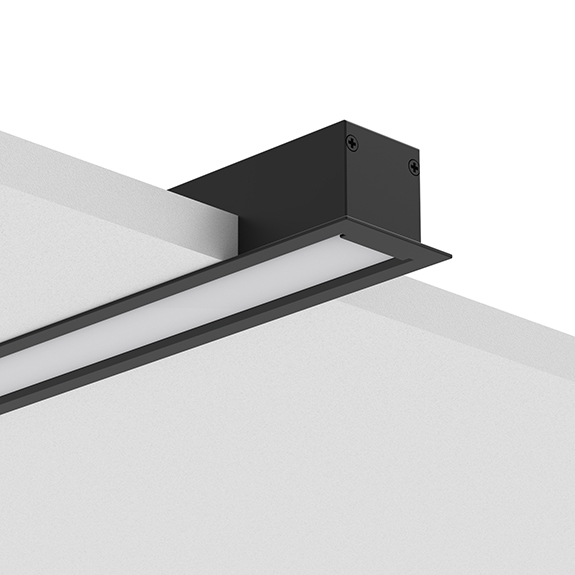

This 25mm LED profile is especially designed to suit our flexible LED Strip. The profile is available in maximum 6.0 mtr lengths and can be customized to suit any project or requirement. It's suitable for all Architectural lighting application.
Description
R25 Recessed Mount LED Aluminum Profile Specification:
Item No.: LS-R25
Beam angle: 100 degrees
Max LED strip width: 12mm/16mm
Power consumption: <19W/m
Length: 2m, 2.5m in stock, max 6m upon request
Aluminum profile: Temper: T5
Grade: 6063 series
Diffuser material: PC
Diffuser color: Milky Satin PC diffuser/Milky Prismatic PC diffuser

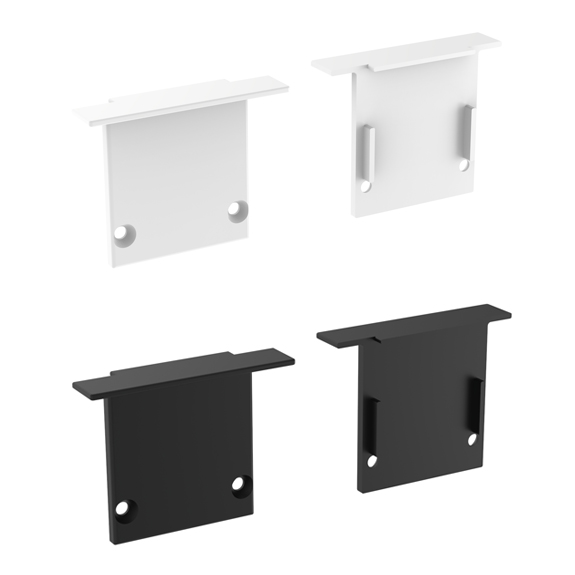

Accessories: Aluminium end cap without hole
Metal Clip
Surface treatment: Satin anodized finish/Power coating finish
Customized Color: Color Anodized/Powder Coated as RAL Color
MOQ: 100m/item
Warranty: 5 years
Certification: CE, RoHs, REACH



R25 Recessed Mount LED Aluminum Profile Features:


- Aluminum Extrusion with wings to conceal the groove.

-Can be recessed mounting in pre-made slots of woodworking and drywall structures.

-Increase the life time of your LED Strip.


 -Easy installation, low maintenance and environmental friendly.


Applications:


It's suitable for all architectural lighting applications which is with drywall structures.
