| 2835-120L-B LED Strip Light Specification： | |||
| Item No.: | LS-2835-120L-B | ||
| LED Type: | SMD 2835 (LED brand: Lumileds) | ||
| LEDs/Meter: | 120 LEDs | ||
| FPC Copper: | 2.5 oZ | ||
| FPC Width: | 8mm | ||

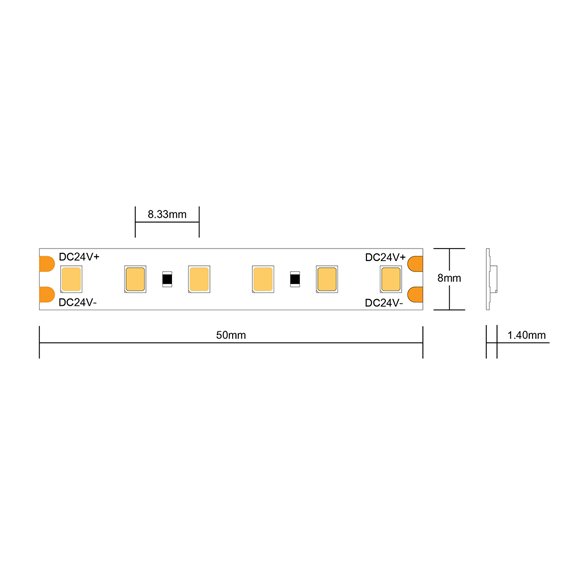

| FPC Cutting Length: | 50mm with 6 LEDs | ||
| Voltage(DC) | 24V | ||
| Power(W/m) | 10W/m | ||
| CCT(K) | 2700K, 3000K, 3500K, 4000K, 5500K, 6500K | ||
| Lm/m±10% | 1000lm/m @ 4000K | ||
| SDCM: | <3 | ||
| CRI: | Ra > 95 | ||
| IP Rate: | IP 20 | ||
| Max Run Length(m) | 10m | ||
| Dimming Way: | NO Dimming, PMW, DALI Dimming, Bluebee, Zigbee, CASAMBI, Blueteeth, Tuya | ||
| Warranty: | 5 years | ||
| Certification: | CE, RoHs, REACH | ||
2835-120L-B LED Strip Light Features:
- IP20 for indoor application.

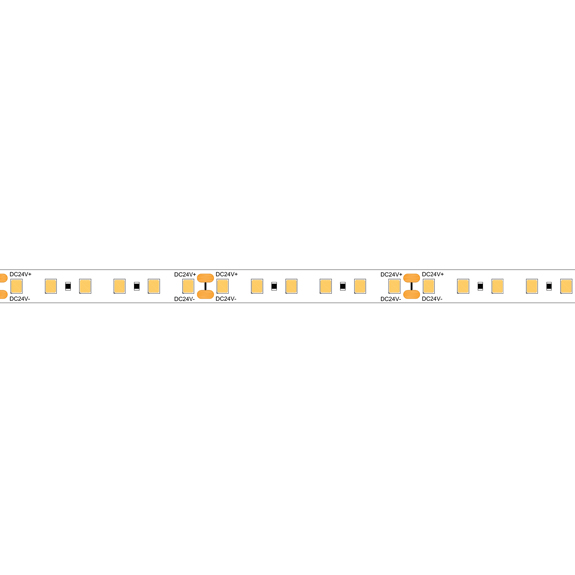

- Can be divided into units of six LEDs or multiples thereof with no loss of function for the parts.
- Can be connected to the front of the module or at the division points.
- Self-adhesive backing for simple installation.
- Dimmable by pulse width modulation (PWM).
- Small height for low-profile lighting solutions.
- Only parallel connection allowed.
Applications:
Installation Accessories:
