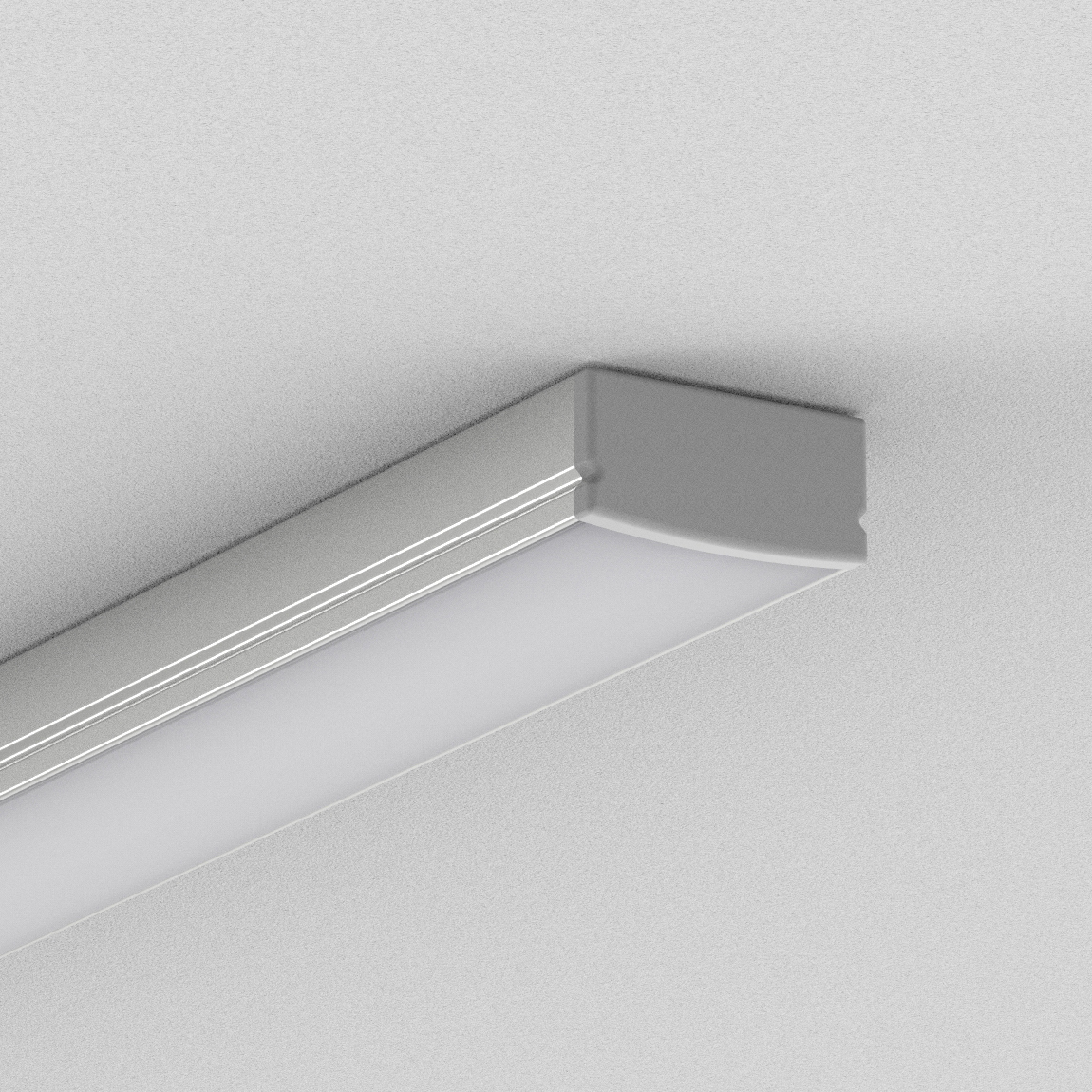

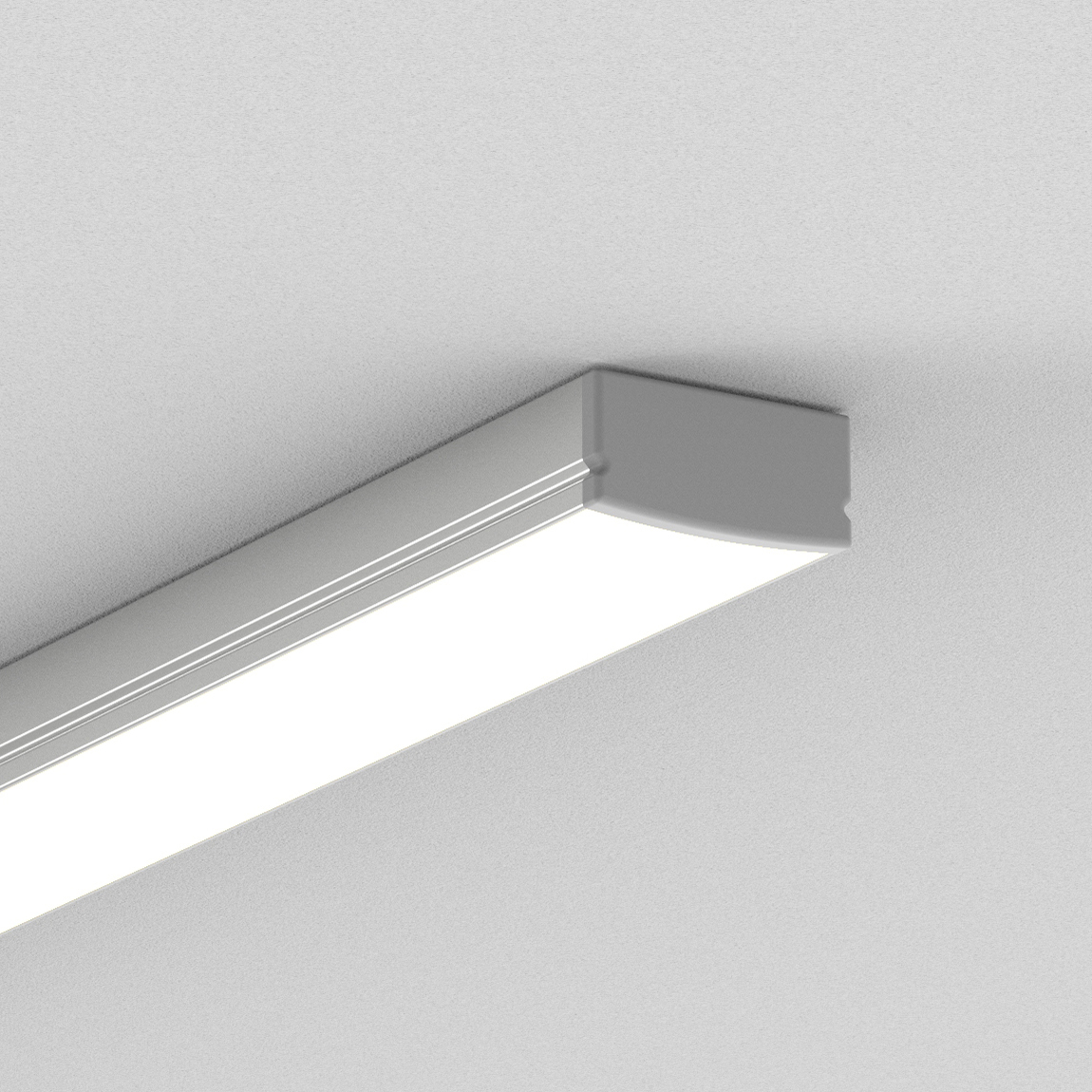

S01 Surface LED Profile
Surface Mount
This Slim surface mount LED profile is especially designed to suit our flexible LED Strip. The profile is available in maximum 6.0 mtr lengths and can be customized to suit any project or requirement. It's suitable for all concealed lighting applications
Description
S01 Surface Mount LED Aluminum Profile Specification:
Item No.: LS-S01
Beam angle: 100 degrees
Max LED strip width: 12mm
Power consumption: <14.4W/m
Length: 2m, 2.5m in stock, max 6m upon request
Aluminum profile: Temper: T5
Grade: 6063 series
Diffuser material: PMMA/PC
Diffuser color: Opal/Milky/Frosted/Clear/Black

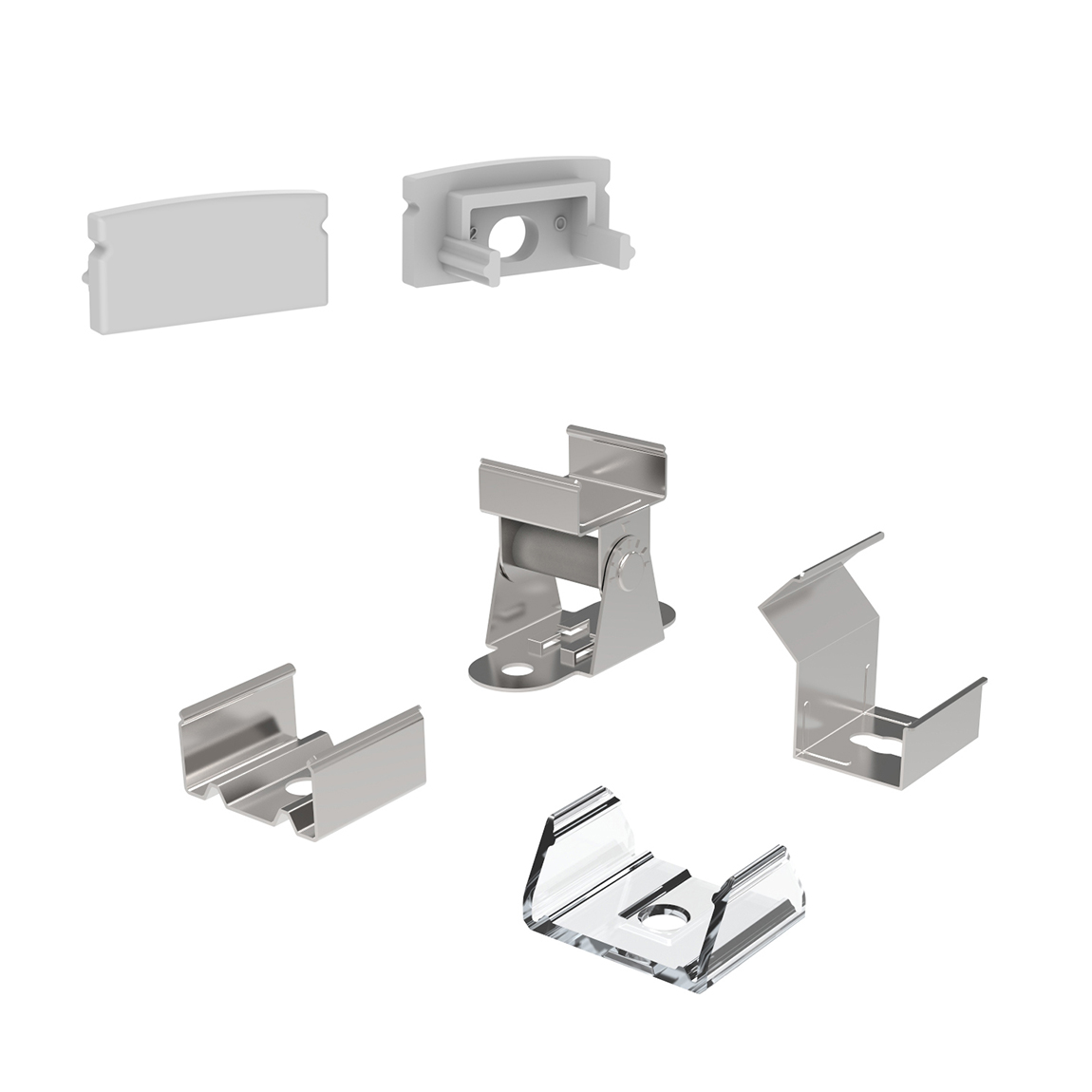

Accessories: Plastic endcap with hole/ without hole
Metal Clip/PC Clip
Surface treatment: Satin anodized finish
Customized Color: Color Anodized/Powder Coated as RAL Color
MOQ: 100m/item
Warranty: 5 years
Certification: CE, RoHs, REACH



S01 Surface Mount LED Aluminum Profile Features:


- Slim Aluminum Extrusion is suitable for all concealed lighting applications.


-Can be mounted in pre-made slots of Woodworking and drywall structures.


-Increase the life time of your LED Strip.


 -Easy installation, low maintenance and environmental friendly.


Applications:


It's suitable for all concealed lighting applications including joinery lighting, cove lighting, under-cabinet lighting, display case lighting, restaurant & bar lighting, residential strip-lighting etc.
