Location: Home > Products > LED Aluminum Profile > Recessed Mount

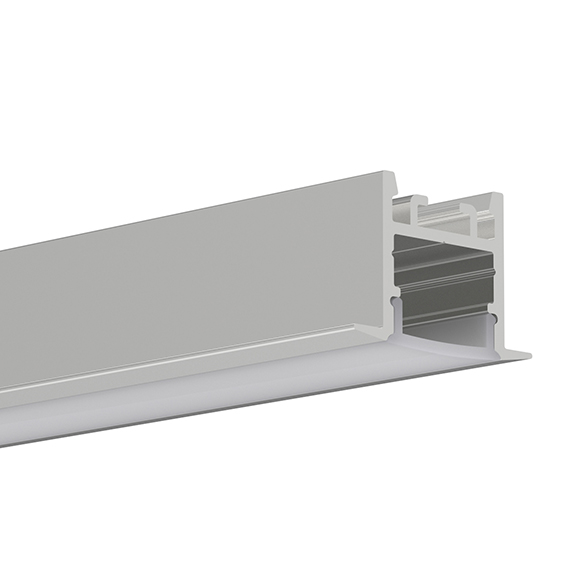

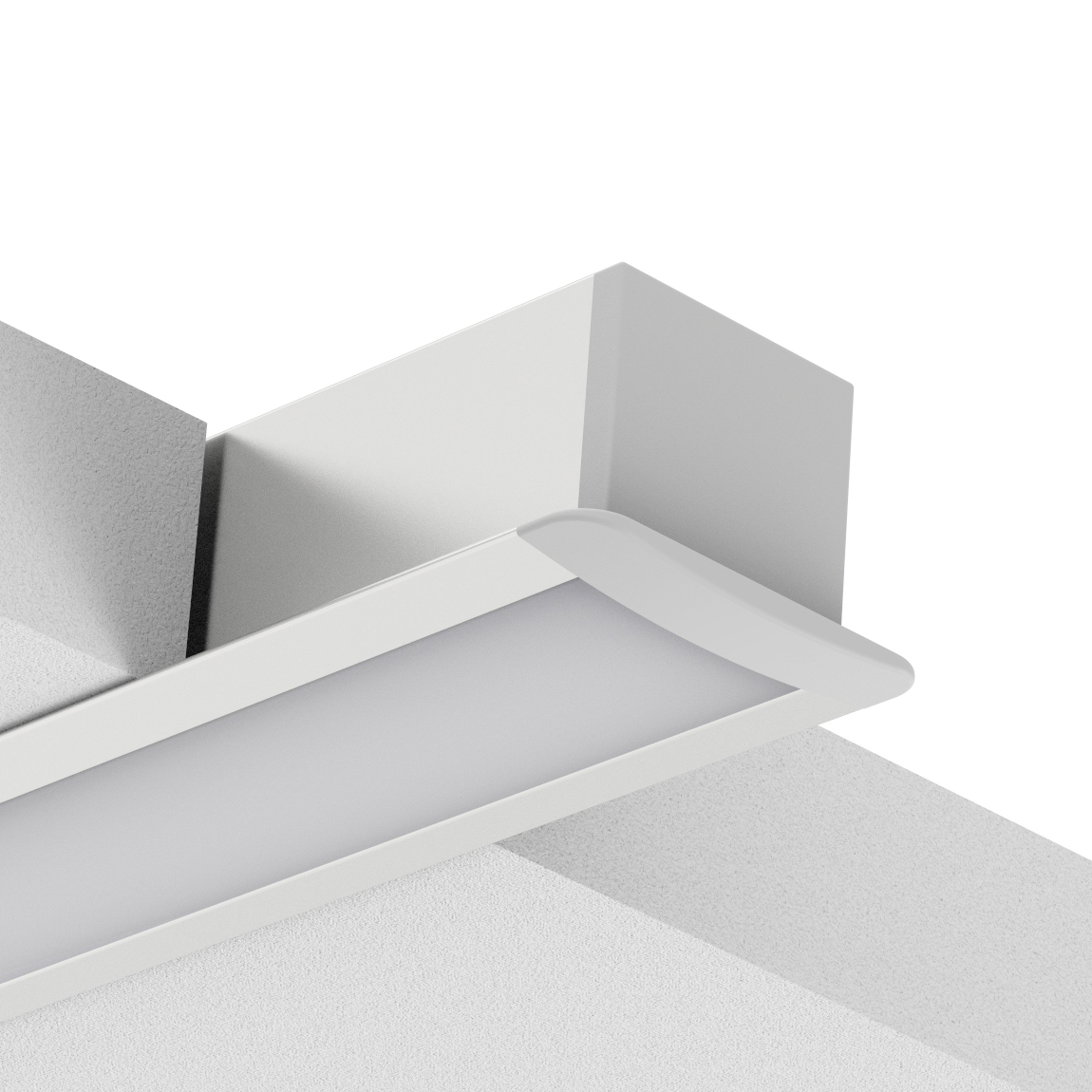

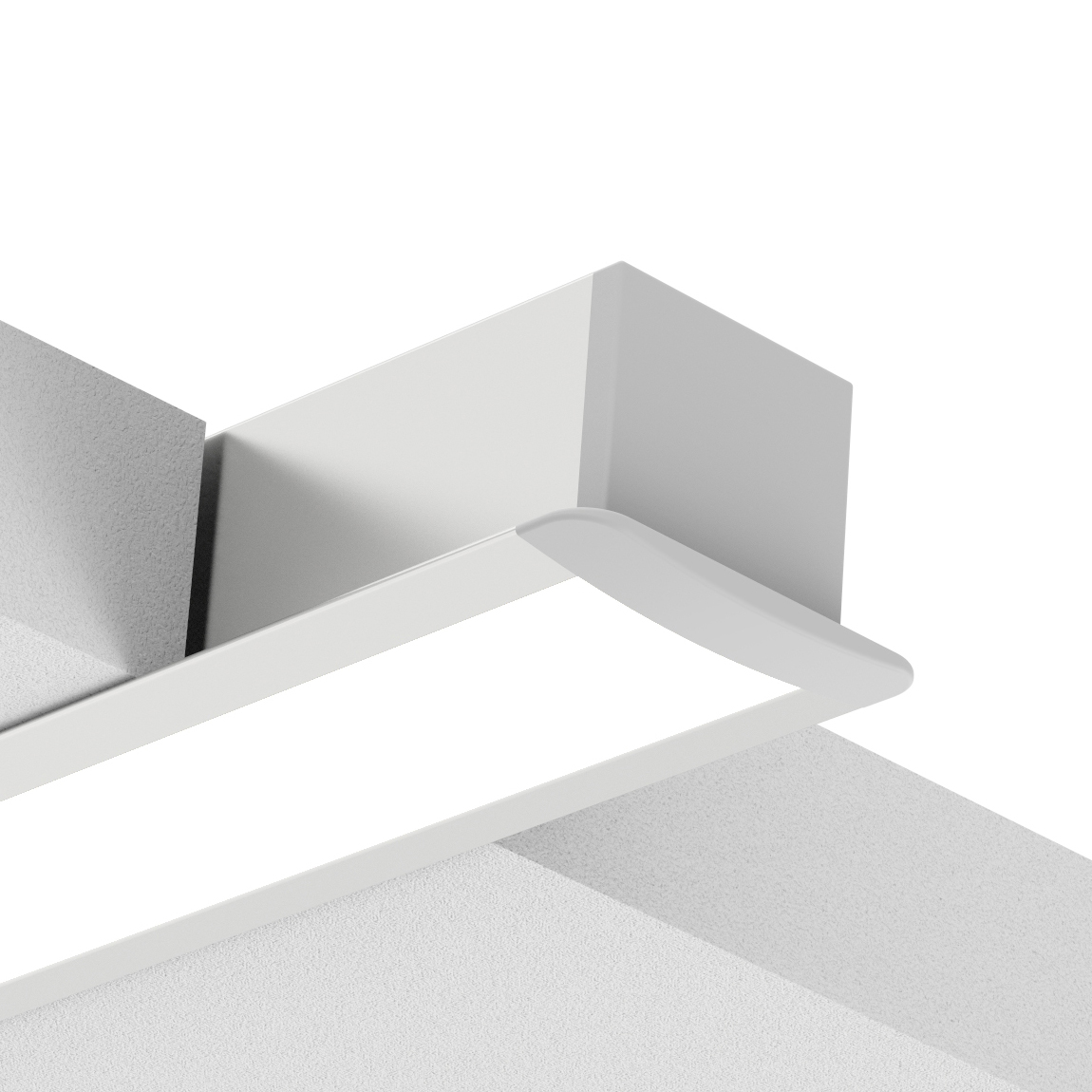

R06 Recessed LED Profile
Recessed Mount
This recessed LED profile is especially designed to suit our flexible LED Strip. The profile is available in maximum 6.0 mtr lengths and can be customized to suit any project or requirement. It's suitable for drywall structures lighting applications.

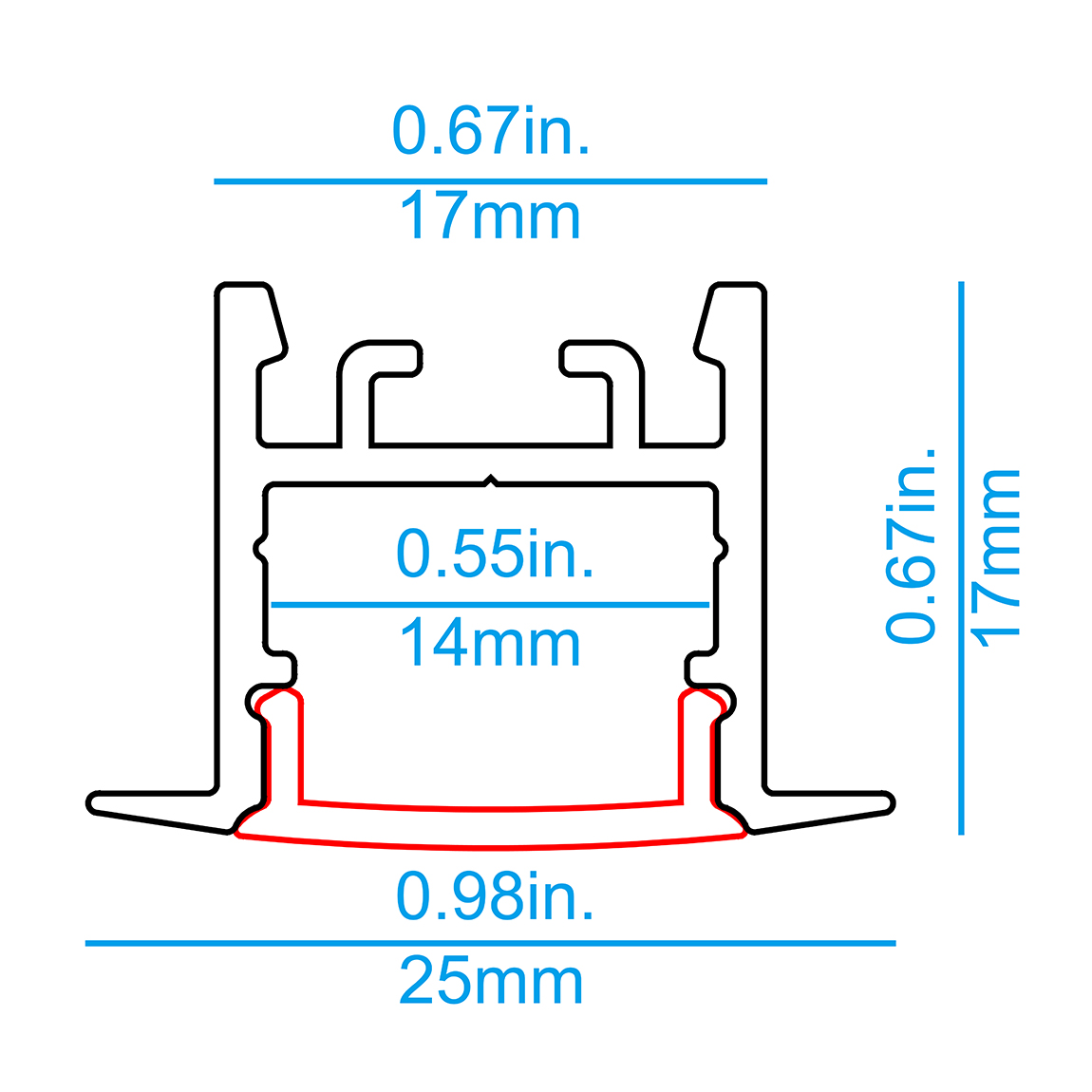

R06 Recessed LED Aluminum Profile Specification:
Item No.: LS-R06
Beam angle: 100 degrees
Max LED strip width: 14mm
Power consumption: <14.4W/m
Length: 2m, 2.5m in stock, max 6m upon request
Aluminum profile: Temper: T5
Grade: 6063 series
Diffuser material: PMMA/PC
Diffuser color: Opal/Milky/Frosted/Clear/Black

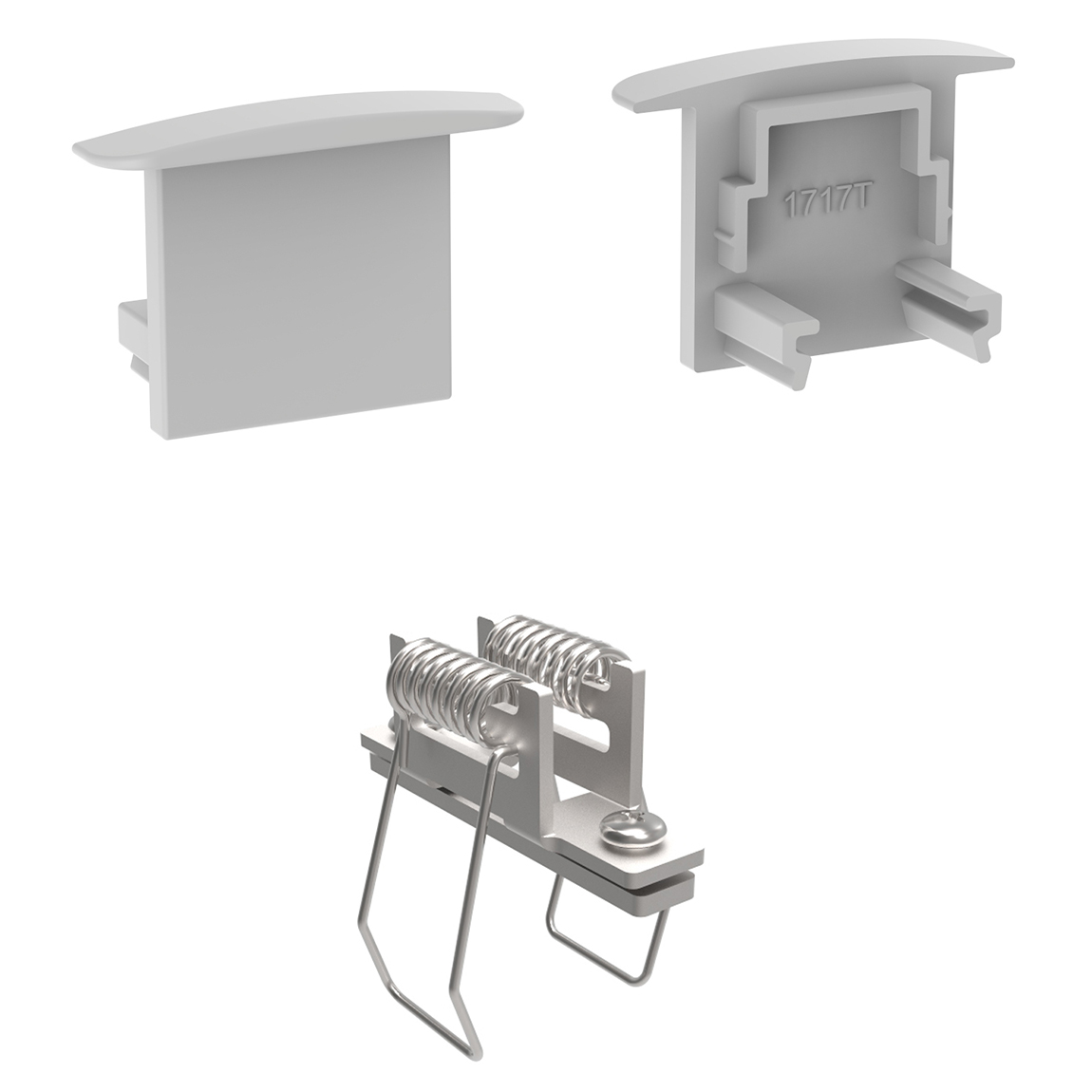

Accessories: Plastic endcap with hole/ without hole
Metal clip/Connectors
Surface treatment: Satin anodized finish
Customized Color: Color Anodized/Powder Coated as RAL Color
MOQ: 100m/item
Warranty: 5 years
Certification: CE, RoHs, REACH


R06 Recessed LED Aluminum Profile Features:

- Aluminum Extrusion with wings to conceal the groove.

-Can be mounted in pre-made slots of Woodworking and drywall structures.

-Increase the life time of your LED Strip.

 -Easy installation, low maintenance and environmental friendly.


It's suitable for all architectural lighting applications which is with drywall structures.
