Location: Home > Products > LED Aluminum Profile > Corner Mount

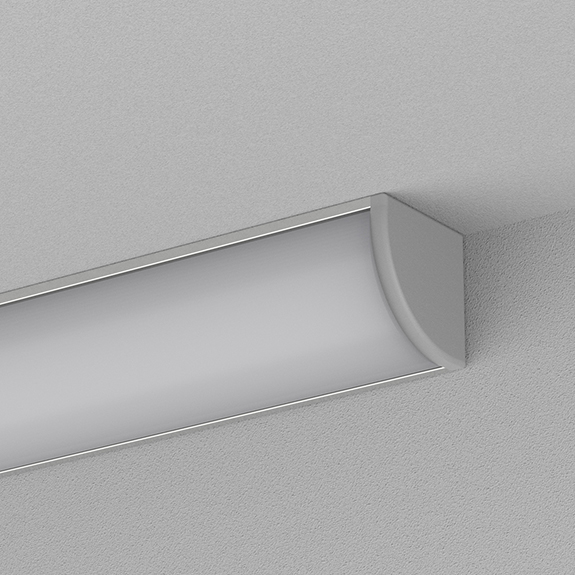

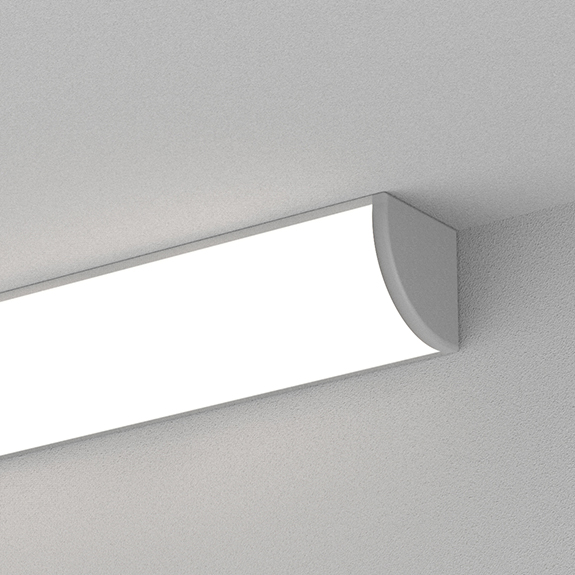

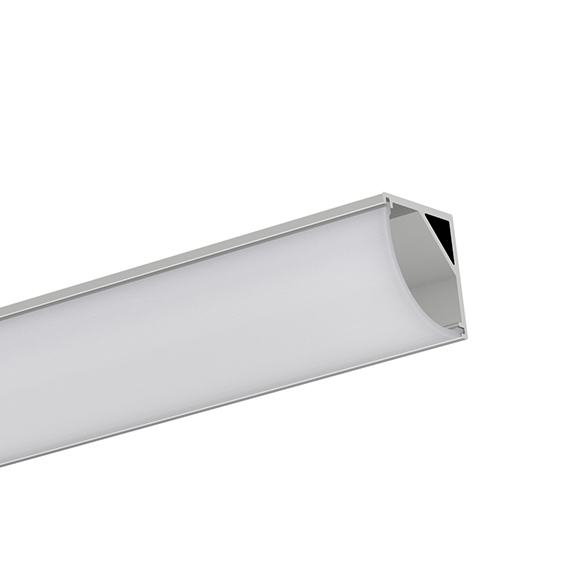

C02 Corner LED Profile
Corner Mount
This 90° corner mounting LED profile is especially designed to suit our flexible LED Strip. The profile is available in maximum 6.0 mtr lengths and can be customized to suit any project or requirement. It's suitable for all concealed lighting application
Description
C02 Corner Mount LED Aluminum Profile Specification:
Item No.: LS-C02
Beam angle: 100 degrees

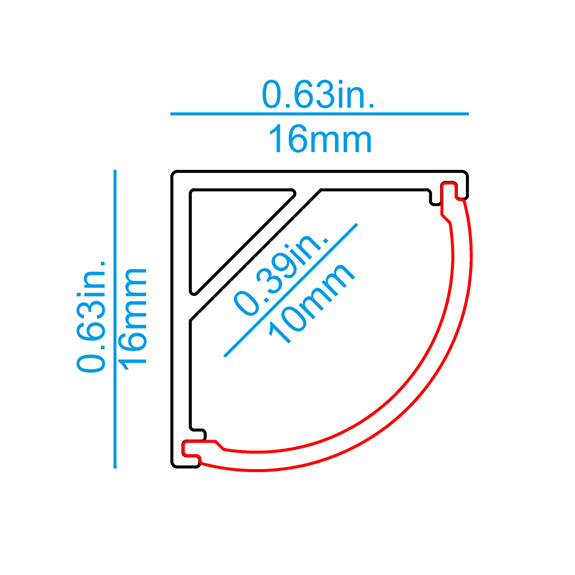

Max LED strip width: 10mm
Power consumption: <14.4W/m
Length: 2m, 2.5m in stock, max 6m upon request
Aluminum profile: Temper: T5
Grade: 6063 series
Diffuser material: PMMA/PC
Diffuser color: Opal/Milky/Frosted/Clear/Black

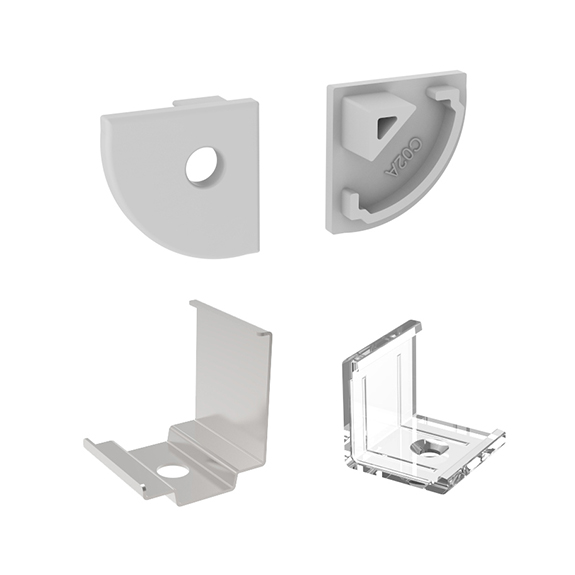

Accessories: Plastic endcap with hole/ without hole
Metal Clip/PC Clip
Surface treatment: Satin anodized finish
Customized Color: Color Anodized
MOQ: 100m/item
Warranty: 5 years
Certification: CE, RoHs, REACH



C02 Corner Mount LED Aluminum Profile Features:


- Slim Aluminum Extrusion for 90° Corner Mounting.


-Can be mounted in pre-made slots of Woodworking and drywall structures.


-Increase the life time of your LED Strip.


 -Easy installation, low maintenance and environmental friendly.


Applications:

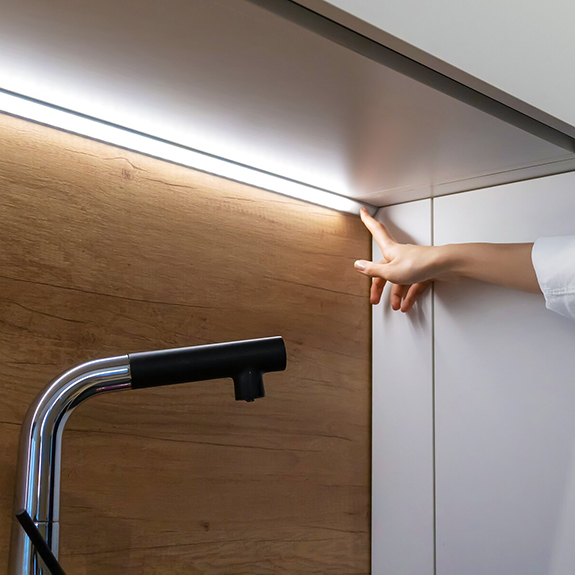

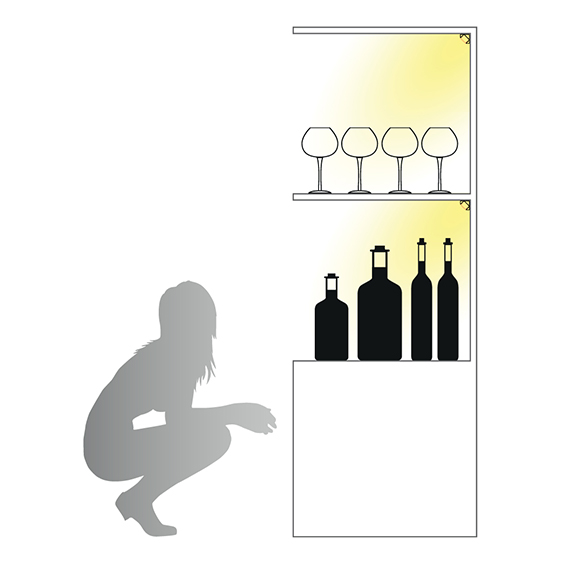

It's suitable for all concealed lighting applications including joinery lighting, cove lighting, under-cabinet lighting, display case lighting, restaurant & bar lighting, residential strip-lighting etc.
